T.Shirai, T.Tabata and H.Tawara, Analytic Cross Sections for Electron Collisions with CO, CO2 , and H2O Relevant to Edge Plasma Impurities, Atomic Data and Nuclear Data Tables 79, 143 (2001).
Cross Sections for Electron Collisions with H2O
| Graph | Analytic Function | Numerical Data | |
|---|---|---|---|

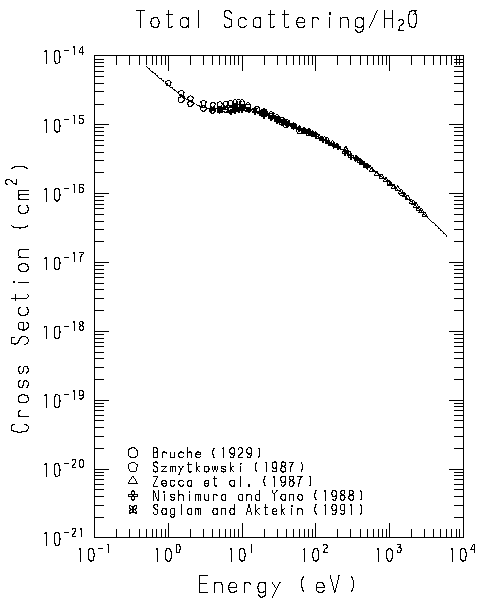

| Total Scattering | h2o-1.gif (7KB) | h2o-1.f | h2o-1.dat |

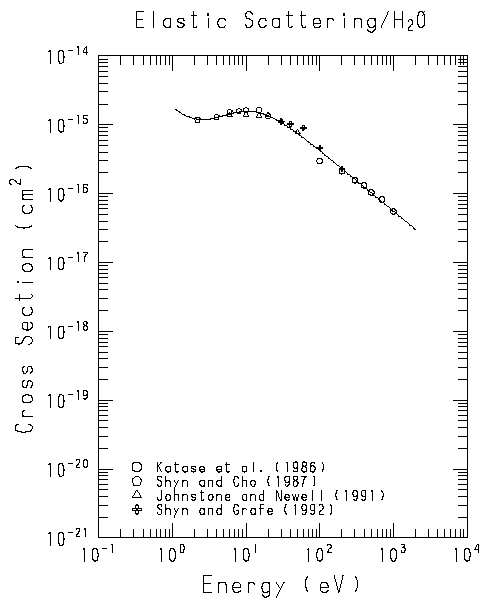

| Elastic Scattering | h2o-2.gif (6KB) | h2o-2.f | h2o-2.dat |

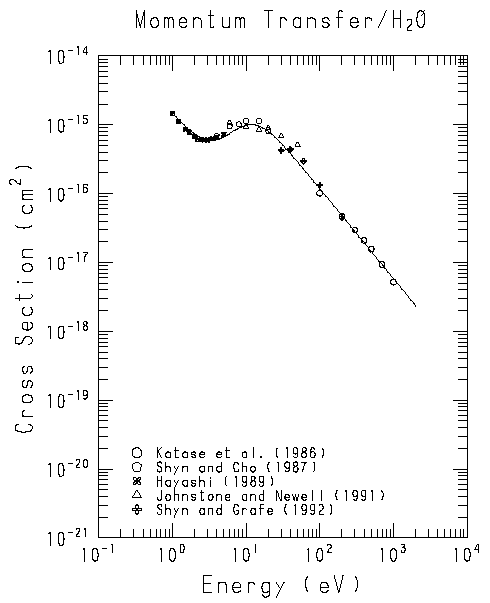

| Momentum Transfer | h2o-3.gif (6KB) | h2o-3.f | h2o-3.dat |
| Vibrational Excitation (Bending) | h2o-4.gif (6KB) | h2o-4.f | h2o-4.dat |

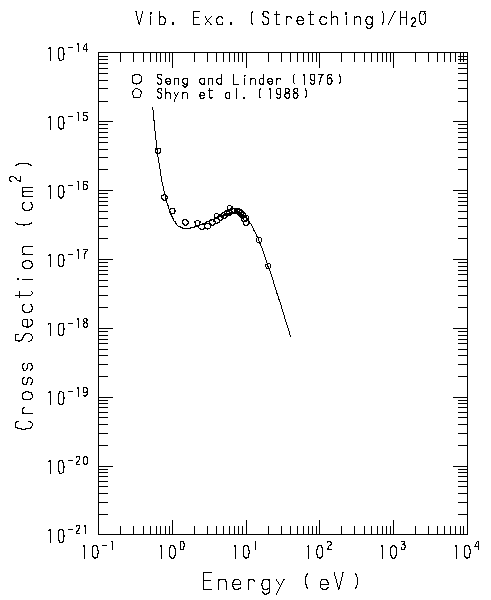

| Vibrational Excitation (Stretching) | h2o-5.gif (6KB) | h2o-5.f | h2o-5.dat |
| Total Ionization | h2o-6.gif (6KB) | h2o-6.f | h2o-6.dat |

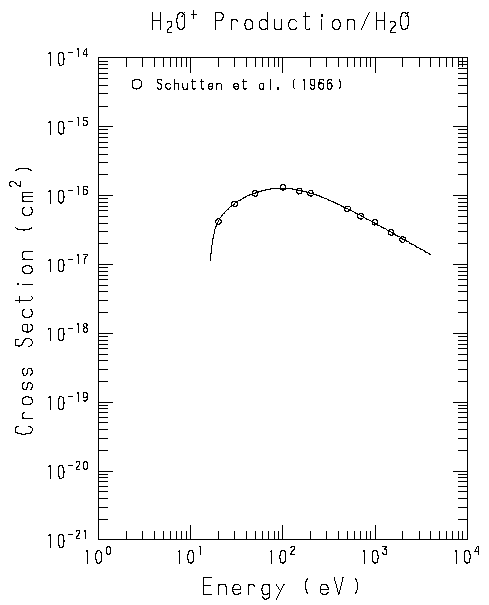

| H2O+ Production | h2o-7.gif (6KB) | h2o-7.f | h2o-7.dat |

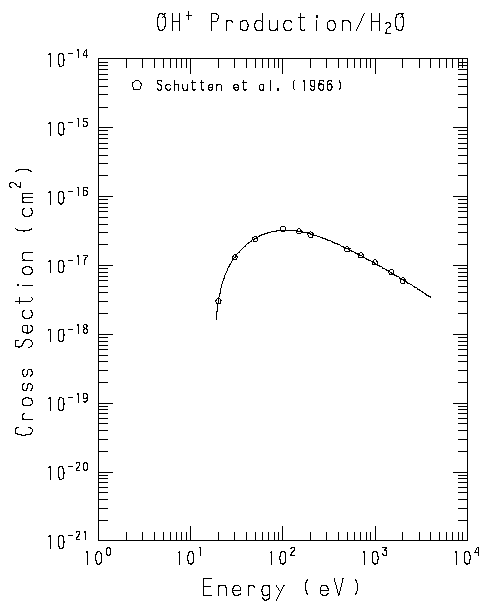

| OH+ Production | h2o-8.gif (6KB) | h2o-8.f | h2o-8.dat |

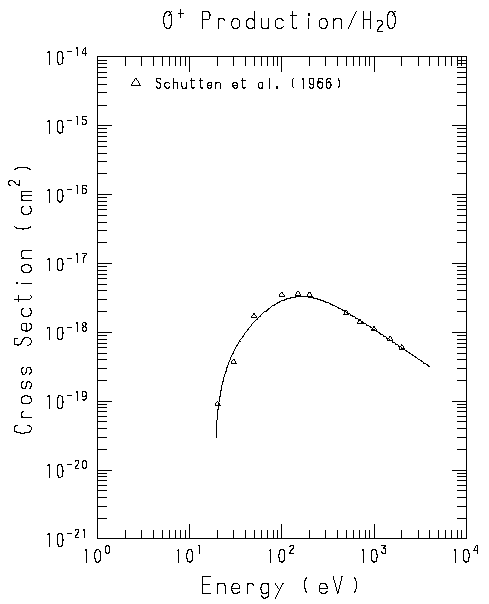

| O+ Production | h2o-9.gif (6KB) | h2o-9.f | h2o-9.dat |

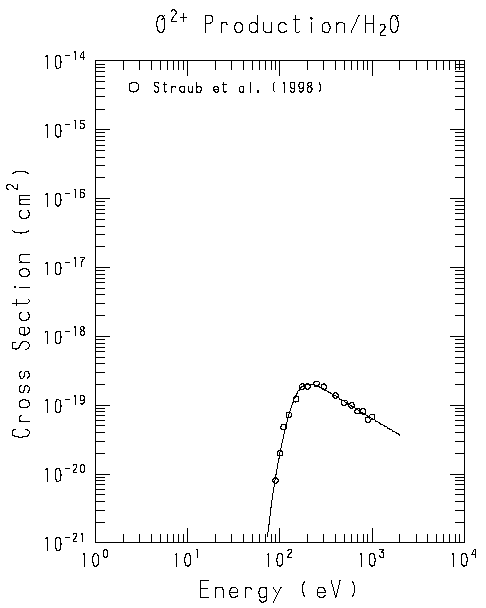

| O2+ Production | h2o-10.gif (6KB) | h2o-10.f | h2o-10.dat |

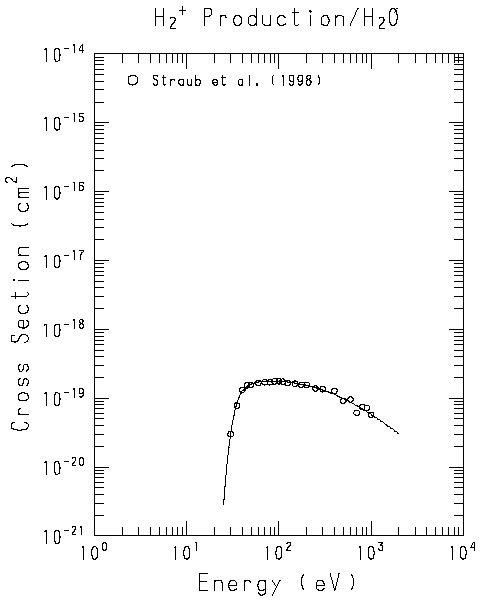

| H2+ Production | h2o-11.gif (6KB) | h2o-11.f | h2o-11.dat |

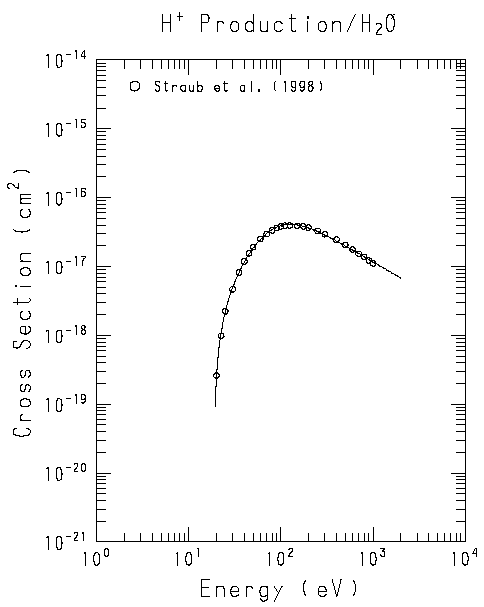

| H+ Production | h2o-12.gif (6KB) | h2o-12.f | h2o-12.dat |
| H(n = 3) Production | h2o-13.gif (5KB) | h2o-13.f | h2o-13.dat |

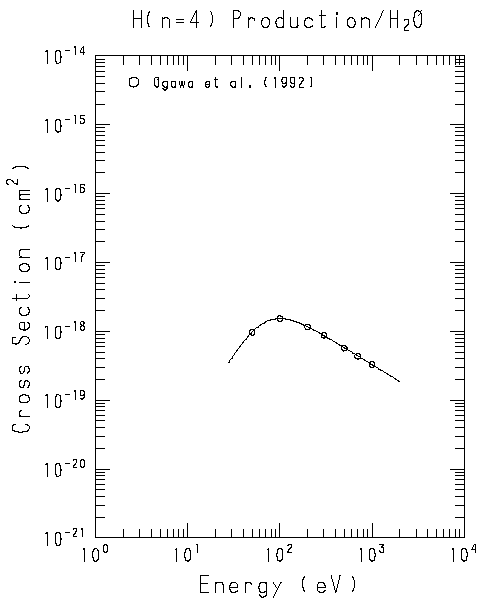

| H(n = 4) Production | h2o-14.gif (5KB) | h2o-14.f | h2o-14.dat |
| Lyman-α Emission | h2o-15.gif (6KB) | h2o-15.f | h2o-15.dat |

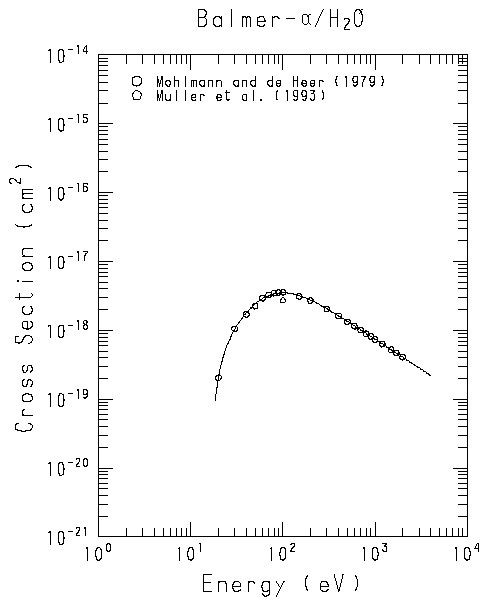

| Balmer-α Emission | h2o-16.gif (6KB) | h2o-16.f | h2o-16.dat |

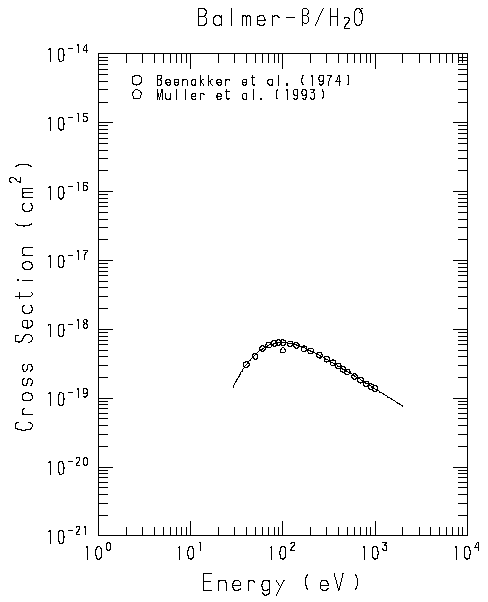

| Balmer-β Emission | h2o-17.gif (6KB) | h2o-17.f | h2o-17.dat |
| Balmer-γ Emission | h2o-18.gif (6KB) | h2o-18.f | h2o-18.dat |
| Balmer-δ Emission | h2o-19.gif (6KB) | h2o-19.f | h2o-19.dat |

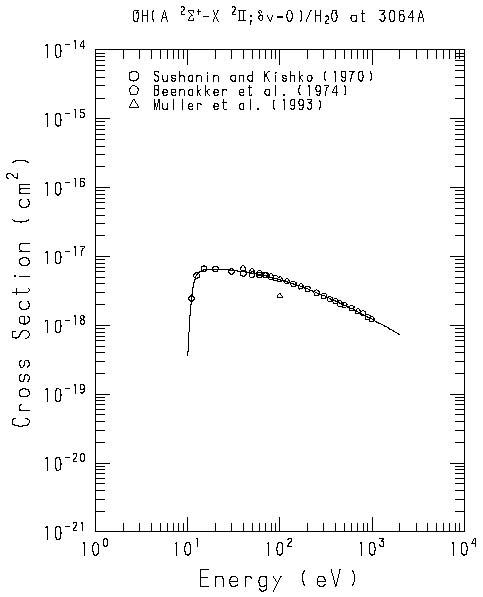

| Emission from OH(A 2Σ+ X 2Π;δv = 0) at 3064Å | h2o-20.gif (6KB) | h2o-20.f | h2o-20.dat |

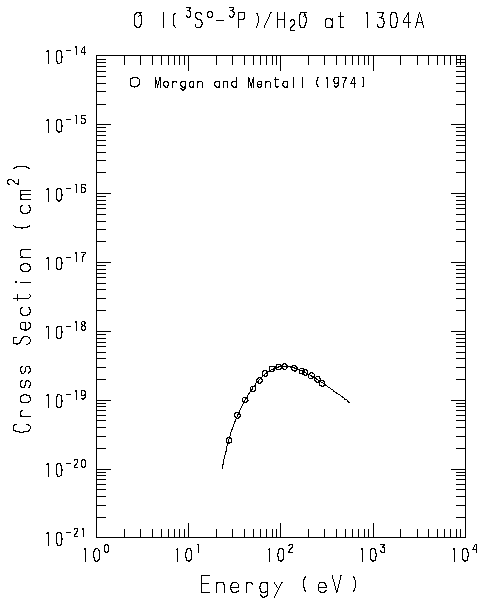

| Emission from O I(2p33s 3S0 - 2p4 3P) at 1304Å | h2o-21.gif (6KB) | h2o-21.f | h2o-21.dat |
| Emission from O I(2p33p 5P - 2p33s 5S0) at 7774Å | h2o-22.gif (6KB) | h2o-22.f | h2o-22.dat |

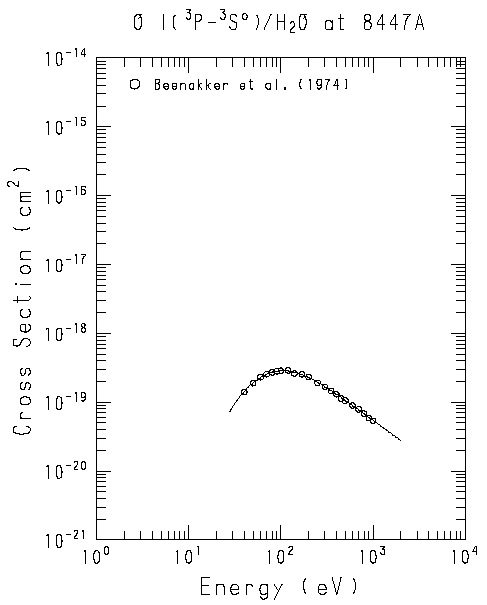

| Emission from O I(2p33p 3P - 2p33s 3S0) at 8447Å | h2o-23.gif (6KB) | h2o-23.f | h2o-23.dat |
