T.Shirai, T.Tabata, H.Tawara, Y.Itikawa, Analytic Cross Sections for Electron Collisions with Hydrocarbons, Atomic Data and Nuclear Data Tables 80, 147 (2002).
Cross Sections for Electron Collisions with CH4
| Graph | Analytic Function | Numerical Data | |
|---|---|---|---|

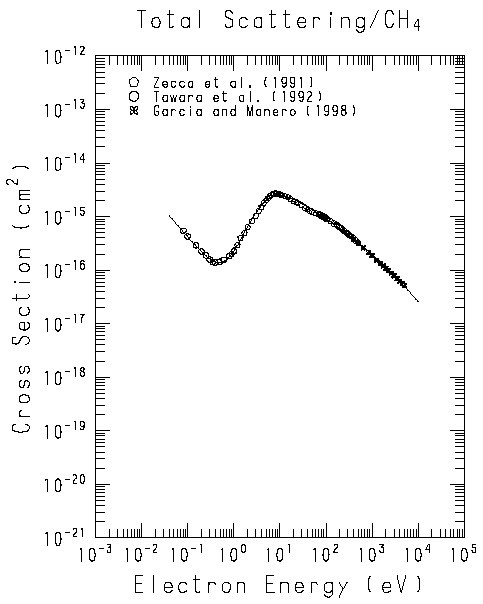

| Total Scattering | ch4-1.gif (7KB) | ch4-1.f | ch4-1.dat |
| Elastic Scattering | ch4-2.gif (7KB) | ch4-2.f | ch4-2.dat |
| Momentum transfer | ch4-3.gif (7KB) | ch4-3.f | ch4-3.dat |
| Vibrational Excitation (v2+v4) | ch4-4.gif (7KB) | ch4-4.dat | |
| Vibrational Excitation (v1+v3) | ch4-5.gif (7KB) | ch4-5.dat | |
| Attachment | ch4-6.gif (6KB) | ch4-6.f | ch4-6.dat |

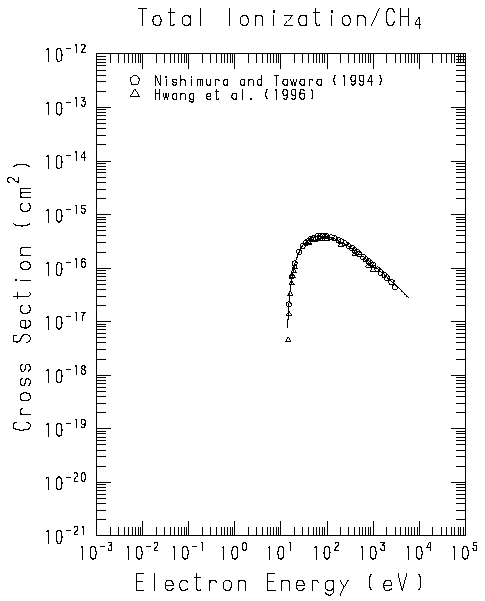

| Total Ionization | ch4-7.gif (7KB) | ch4-7.f | ch4-7.dat |

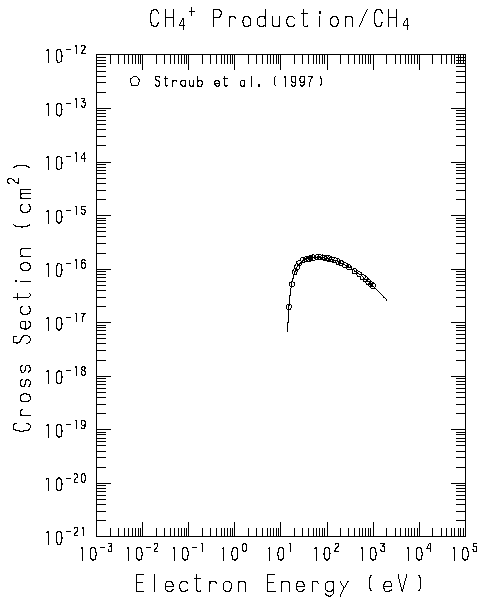

| CH4+ Production | ch4-8.gif (6KB) | ch4-8.f | ch4-8.dat |

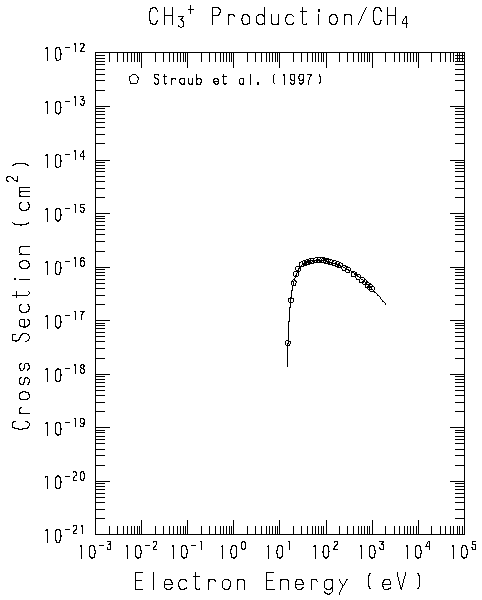

| CH3+ Production | ch4-9.gif (6KB) | ch4-9.f | ch4-9.dat |
| CH2+ Production | ch4-10.gif (6KB) | ch4-10.f | ch4-10.dat |

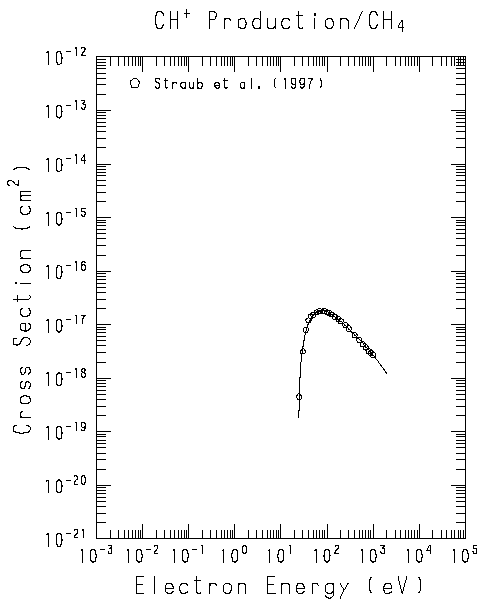

| CH+ Production | ch4-11.gif (6KB) | ch4-11.f | ch4-11.dat |
| C+ Production | ch4-12.gif (6KB) | ch4-12.f | ch4-12.dat |

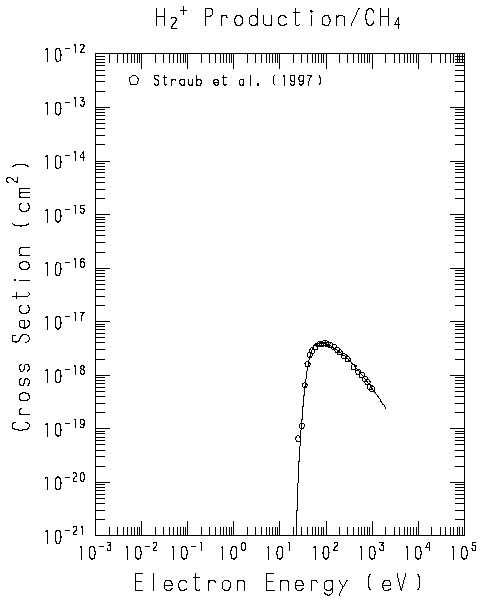

| H2+ Production | ch4-13.gif (6KB) | ch4-13.f | ch4-13.dat |

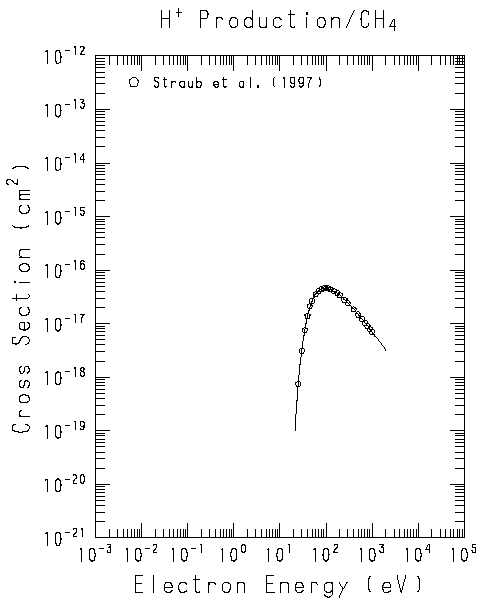

| H+ Production | ch4-14.gif (6KB) | ch4-14.f | ch4-14.dat |
| Total Dissociation | ch4-15.gif (6KB) | ch4-15.f | ch4-15.dat |

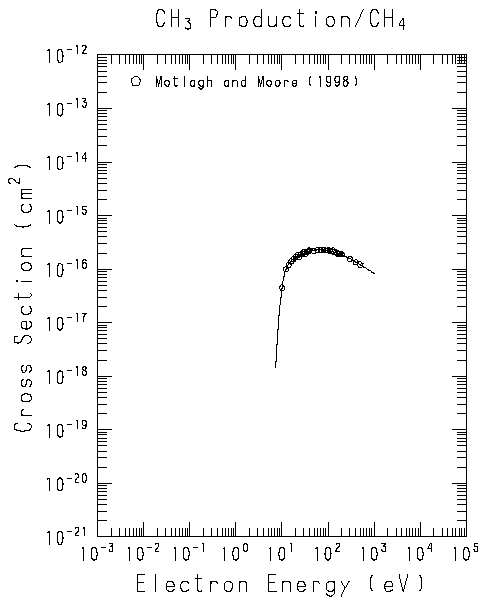

| CH3 Production | ch4-16.gif (6KB) | ch4-16.f | ch4-16.dat |

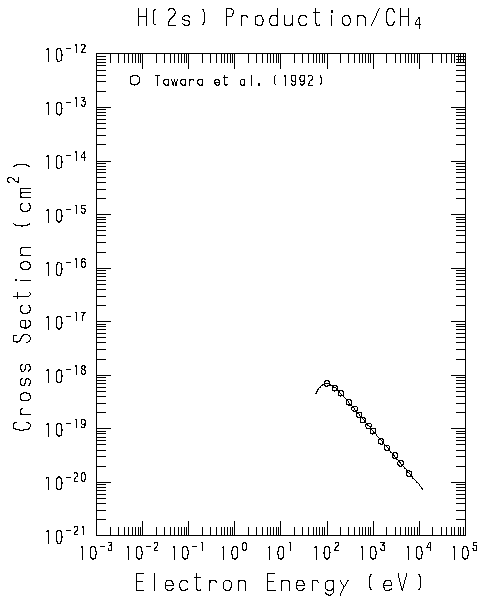

| H(2s) Production | ch4-17.gif (6KB) | ch4-17.f | ch4-17.dat |

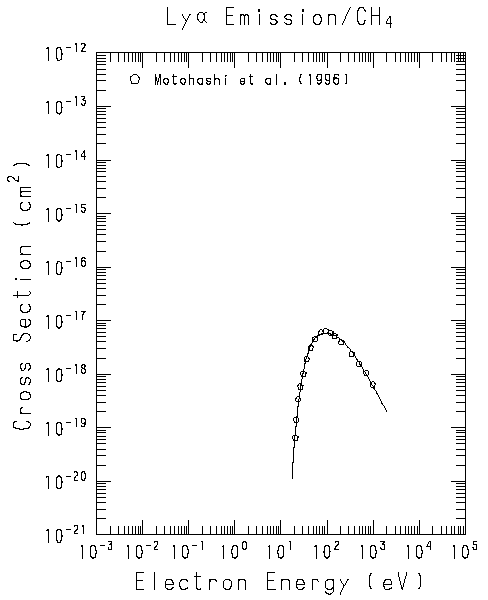

| Lyα Emission | ch4-18.gif (6KB) | ch4-18.f | ch4-18.dat |

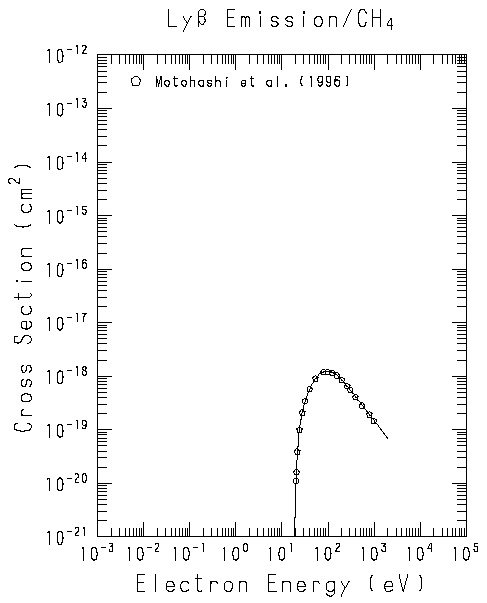

| Lyβ Emission | ch4-19.gif (6KB) | ch4-19.f | ch4-19.dat |
| Lyγ Emission | ch4-20.gif (6KB) | ch4-20.f | ch4-20.dat |
| Hα Emission | ch4-21.gif (6KB) | ch4-21.f | ch4-21.dat |

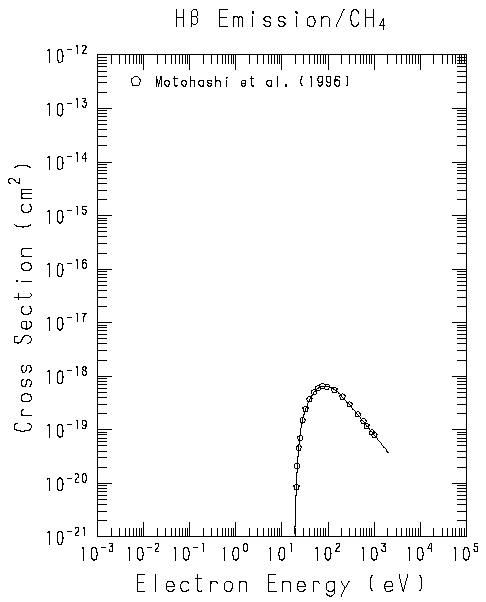

| Hβ Emission | ch4-22.gif (6KB) | ch4-22.f | ch4-22.dat |

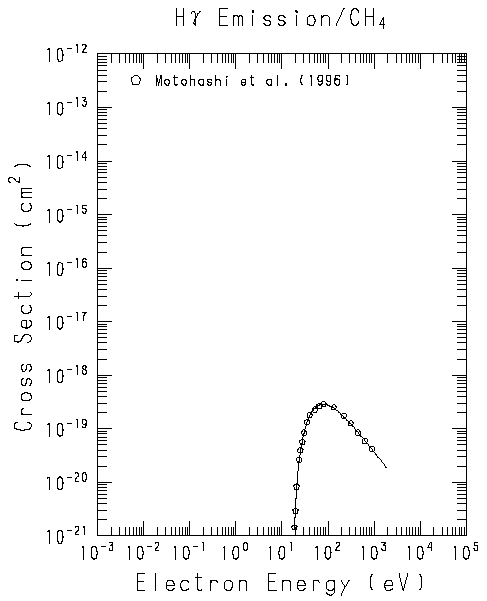

| Hγ Emission | ch4-23.gif (6KB) | ch4-23.f | ch4-23.dat |
| Hδ Emission | ch4-24.gif (6KB) | ch4-24.f | ch4-24.dat |

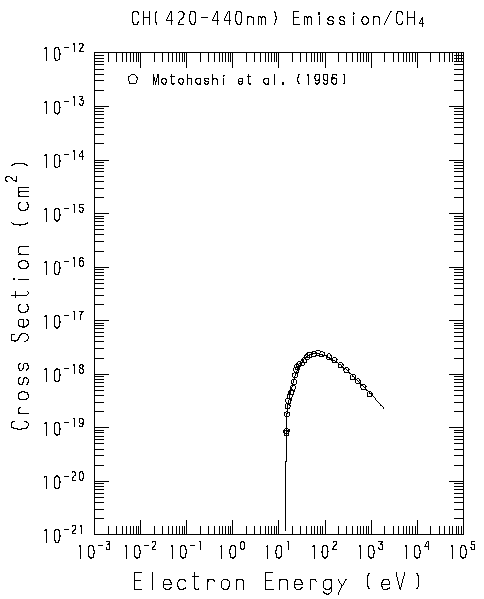

| CH(A 2Δ - X 2Π) Emission at 420-440nm | ch4-25.gif (7KB) | ch4-25.f | ch4-25.dat |

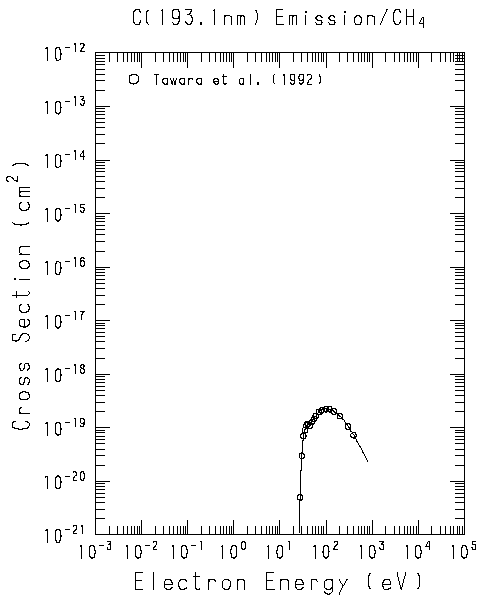

| C(2p3s 1P0 - 2p2 1D) Emission at 193.1nm | ch4-26.gif (6KB) | ch4-26.f | ch4-26.dat |

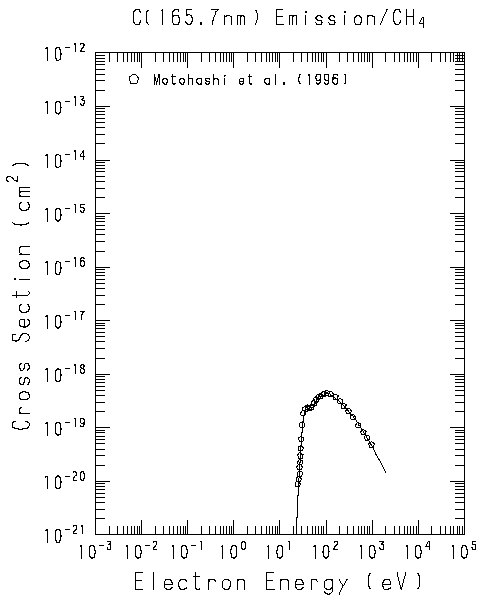

| C(2p3s 3P0 - 2p2 3P) Emission at 165.7nm | ch4-27.gif (7KB) | ch4-27.f | ch4-27.dat |
| C(2s2p3 3D0 - 2s2 2p2 3P) Emission at 156.1nm | ch4-28.gif (6KB) | ch4-28.f | ch4-28.dat |

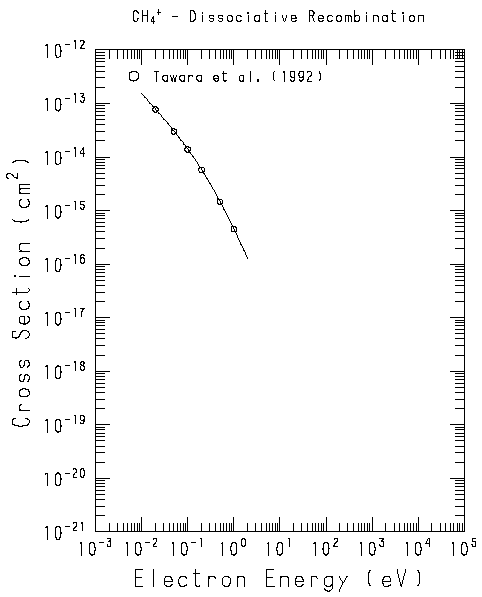

| Dissociative Recombination/CH4+ | ch4-29.gif (6KB) | ch4-29.f | ch4-29.dat |

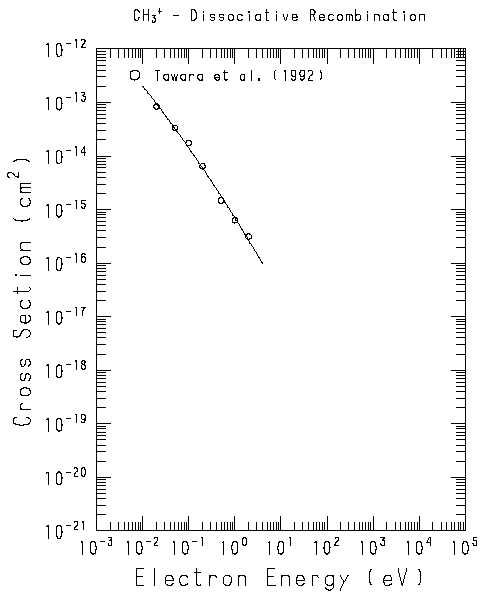

| Dissociative Recombination/CH3+ | ch4-30.gif (6KB) | ch4-30.f | ch4-30.dat |

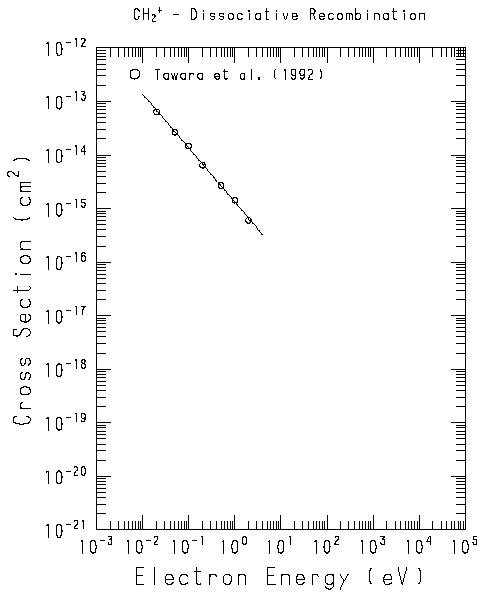

| Dissociative Recombination/CH2+ | ch4-31.gif (6KB) | ch4-31.f | ch4-31.dat |
| Dissociative Recombination/CH+ | ch4-32.gif (6KB) | ch4-32.f | ch4-32.dat |
| Total Ionization/CD3 | ch4-33.gif (7KB) | ch4-33.f | ch4-33.dat |
| CD3+ Production/CD3 | ch4-34.gif (6KB) | ch4-34.f | ch4-34.dat |
| CD2+ Production/CD3 | ch4-35.gif (6KB) | ch4-35.f | ch4-35.dat |
| Total Ionization/CD2 | ch4-36.gif (7KB) | ch4-36.f | ch4-36.dat |

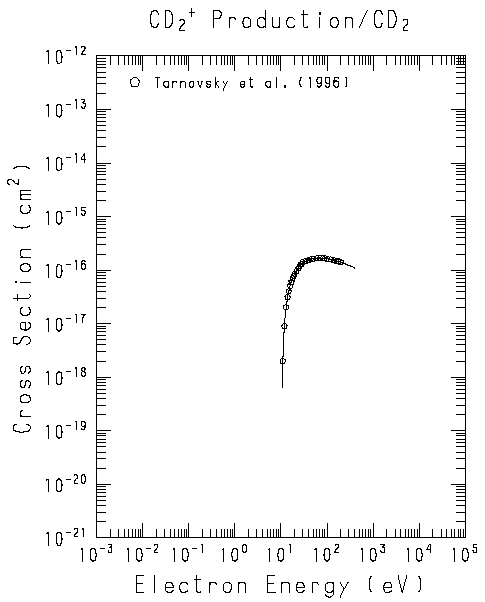

| CD2+ Production/CD2 | ch4-37.gif (6KB) | ch4-37.f | ch4-37.dat |
| CD+ Production/CD2 | ch4-38.gif (6KB) | ch4-38.f | ch4-38.dat |

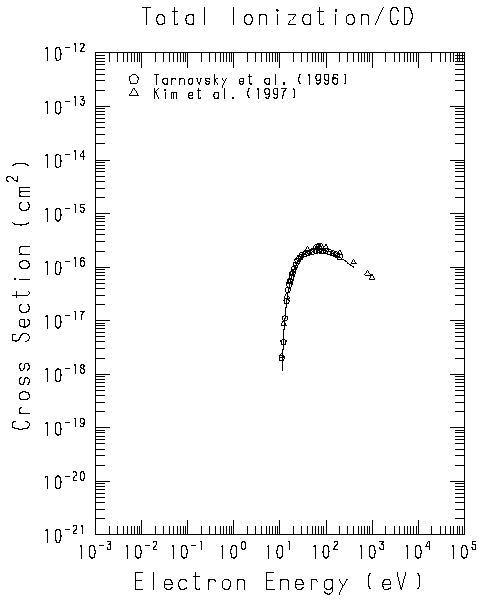

| Total Ionization/CD | ch4-39.gif (7KB) | ch4-39.f | ch4-39.dat |
| CD+ Production/CD | ch4-40.gif (6KB) | ch4-40.f | ch4-40.dat |

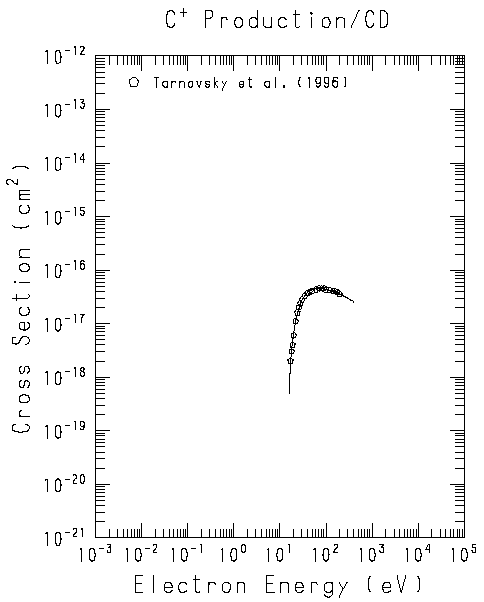

| C+ Production/CD | ch4-41.gif (6KB) | ch4-41.f | ch4-41.dat |
