NanoTerasu introduces 3-GeV full energy injector linear accelerator (LINAC). The total length is 110 m with 40 of 2-m C-band accelerating structures.
We are also conducting research and development for future Soft-X-ray free-electron laser (SX-FEL) applications.

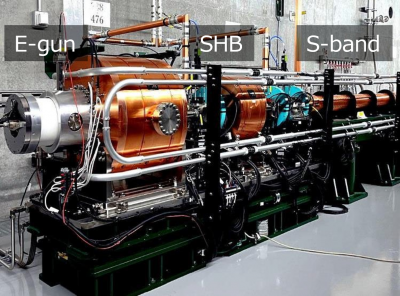

Gridded thermionic cathode RF electron gun and 40-MeV injector
Newly developed RF electron gun is installed. It enables the generation of high-quality and highly stable beams. Details are described in Phys. Rev. Accel. Beams 23, 063401 (2020).
- “Low-emittance radio-frequency electron gun using a gridded thermionic cathode”, T.Asaka, et al., Phys. Rev. Accel. Beams 23, 063401 (2020).

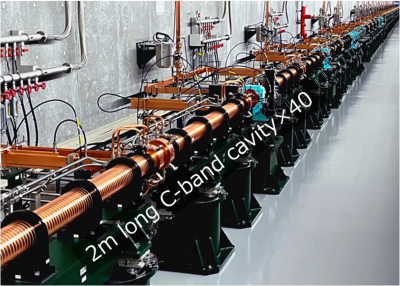

C-band
40 of 2-m C-band accelerating structures are installed. The accelerating field is 42 MV/m.

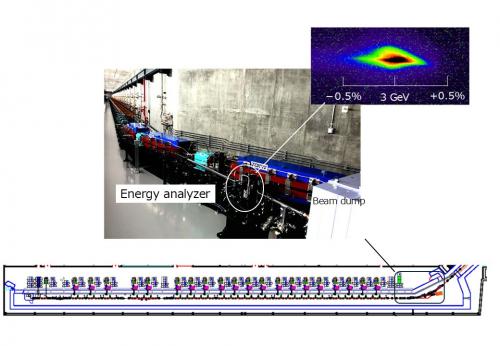

Linac commissioning
E-beam generation from gun on Apr. 17th,2023 and 3GeV acceleration after 10 days
