JT-60SAの高周波加熱電流駆動装置

掲載日:2018年12月26日更新
印刷用ページを表示

JT-60SA 電子サイクロトロン周波数帯 (ECRF) 加熱電流駆動装置

JT-60SA ECRF加熱電流駆動装置の概要

JT-60SA本体室の図とジャイロトロンルームの写真

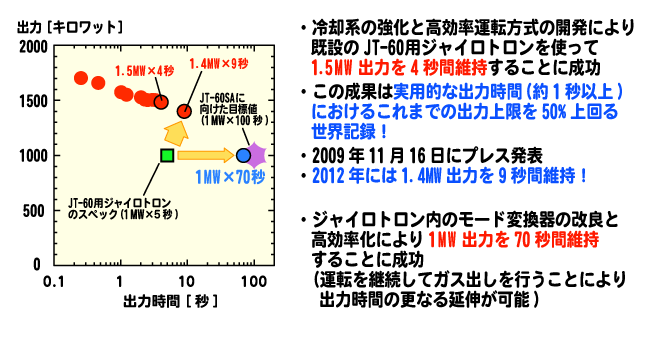

ジャイロトロン開発の進展

 JT-60SAではジャイロトロン1基あたり1MW×100秒の運転が予定されています。
 現在、JT-60SAに向けた開発運転が進められていて、順調に進捗しています。
 また、ジャイロトロン1基あたりの出力を高める開発も行っています。

ジャイロトロン開発の進展のグラフ

 プレス発表へのリンクはこちら

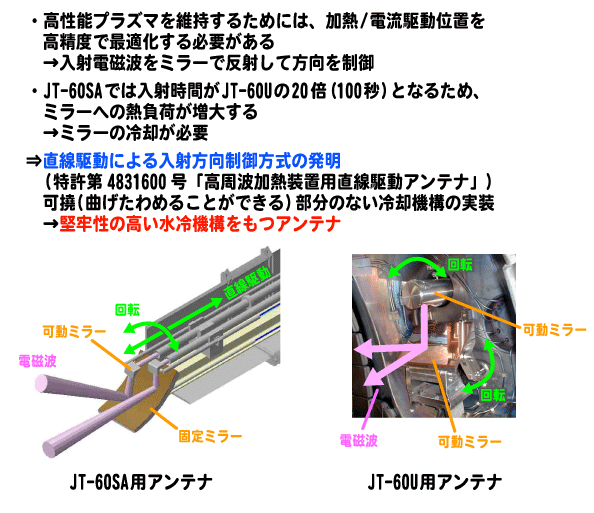

JT-60SA用先進アンテナの開発

JT-60SA用先進アンテナの開発の説明

主要論文リスト

  • S. Moriyama et al., "Design study of a new antenna system for steering microwave beam in electron cyclotron heating/current drive system", Fusion Eng. Design 82 (2007) 785.

  • S. Moriyama et al., "Development and achievements on the high power ECRF system in JT-60U", Nucl. Fusion 49 (2009) 085001.

  • T. Kobayashi et al., "Development of high power gyrotron and power modulation technique using the JT-60U ECRF system", Plasma Fusion Res. 4 (2009) 037.

  • T. Kobayashi et al., "Design study of an ECRF antenna for JT-60SA", Fusion Eng. Design 84 (2009) 1063.

  • S. Moriyama et al., "Development of linear motion antenna and 110 GHz gyrotron for 7 MW electron cyclotron range of frequency system in JT-60SA tokamak", Proc. 34th International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz 2009), Busan, Korea.

  • T. Kobayashi et al., "Development of the long-pulse ECRF system for JT-60SA",
    J. Plasma Fusion Res. SERIES 9 (2010) 363.

  • T. Kobayashi et al., "Progress of high power and long pulse ECRF system development in JT-60", Nucl. Fusion 51 (2011) 103037.

  • T. Kobayashi et al., "Progress in ECRF antenna development for JT-60SA", Fusion Eng. Design 86 (2011) 763.

  • A. Isayama et al., "Recent Results from the Development of the Electron Cyclotron Heating System for JT-60SA toward High-Power Long-Pulse Operations", Plasma Fusion Res. 7 (2012) 2405029.

  • A. Isayama et al., "Progress in the Development of the ECRF System for JT-60SA", Proc. 24th IAEA Fusion Energy Conf. (San Diego, USA, 2012) FTP/P1-16.
