Fiber Optics for Zeff measurement (Vertical)

掲載日:2018年12月26日更新
印刷用ページを表示

Objectives

To measure intensity of visible bremsstrahlung for determination of Zeff

Detectors, Diagnostic Method

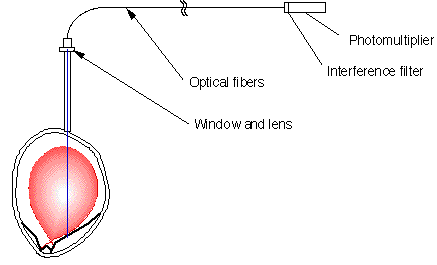

Light collected by a lens is transmitted by optical fibers from the torus hall to a diagnostic room.
The light from the optical fibers passes an interference filter and is detected with a photomultiplier.

Specification

・Time resolution : 100 ms
・Wavelength : 523.1 ア 0.5 nm
・Position : P-4 U2 upper-port

Fig

cf. Tangential Fiber Array for Zeff measurement (P5)
