Objectives
-Density measurement of light impurities and metallic impurities.
-Study of impurity behavior.
[Detectors, Diagnostic Method]

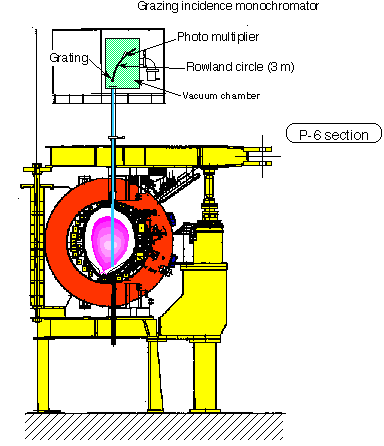

- Grazing incidence monochromator.
-Spectral lines are detected by a photo multiplier.
-The sensitivity of this monochromator was calibrated by the branching ratio method.
Specifications
| -Rowland diameter | : 3 m |
| -Wavelength range | : 1.5 nm - 130 nm |
| -Wavelength resolution | : ~ 0.02 nm |
| -Time resolution | : 0.05 ms |
