Objectives
To measure radiation power profile of the main plasma core and the divertor plasma.
[Detectors, Diagnostic Method]

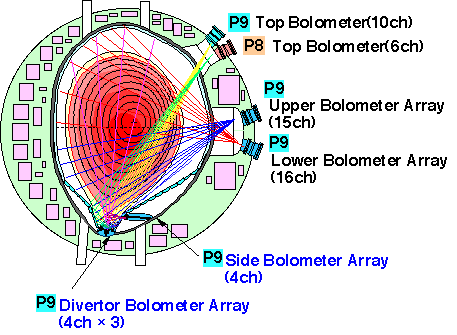

-Array of gold plated on a thin polyimid film bolometers [Bolometer I] looking from several diagnostic port to cover the whole poloidal cross section
-Angle between each viewing cords is ~3degree for the upper half (main plasma) -Increased spatial resolution with 1.2degree ~ 0.7degree for the divertor zone
-To enhance the capability of local measurement near the divertor plate and the x-point bolometers using a mica foil for higher temperature[Bolometer II] have been installed inside the new W-shped divertor chamber on May 1997.
-Bridge amplifiers with DC bias voltage[Bolometer I] and AC voltage with 20 kHz carrier frequency[Bolometer II]
Specifications
| - Sensitivity | : 1-2 1/watt |
| ( Resitance change per | unit power at room temperature) |
| - Spatial resolution | : 5~6 cm in vertical near the plasma center ~3 cm at the divertor region. |
| - Time resolution | : 1 ~ 4 msec. |
