Objectives
Plasma monitor during discharges to check the plasma position and the clearance between plasma and first wall.
Diagnostic Method

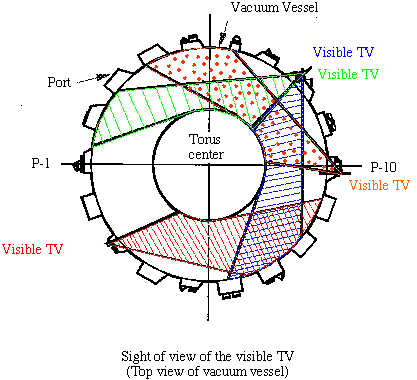

Four setes of CCD visible TV cameras are used as a plasma monitor. A high speed camera is employed for the measurement of plasma motion during disruptions.
Specification
CCD Visible camera
| - Frame rate | : 30 frames/sec |
| - Resolution | : 470(horizontal), 350(vertical) |
