TC probe, N probe

掲載日:2018年12月26日更新
印刷用ページを表示

TC probe (Tangential probe for Plasma Control)
N probe (Normal probe for Plasma Control)

[Specification]
TC probe

Material of coiling wire : Ceranmic coated Pt wire (0.2mmF)
・ Sheath : Inconel
・ Working temperature : < 500 °C
・ Cross section : 0.32 m2
・ Frequency Responce : < 10 kHz

N probe

・ Material of coiling wire : Ceranmic coated Pt wire (0.2mmF)
・ Sheath : Inconel
・ Working temperature : < 500 °C
・ Cross section : 0.58 m2
・ Frequency Responce : < 10 kHz

TC and N probes are installed same poloidal position with slightly separated toroidally.

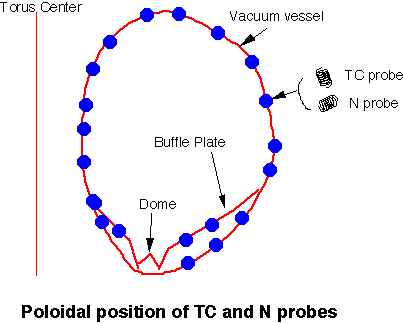

Poloidal position of TC and N probes
